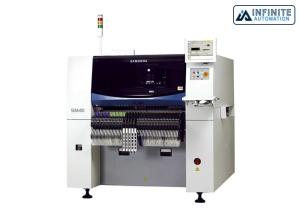

Samsung SM411 SMT Pick Place Machine 42000CPH Original And Used

Brand Name : Samsung

Model Number : SM411

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Packaging Details : Wooden Box

Application : SMT pick and place machine

Model : SM411

Brand : Samsung

Features : 42000 CPH

Condition : Pre-owned

Functionality : Industrial use (SMT)

Packaging : Wooden Box / Crate

Lead Time : 15 days

Payment Terms : 20% deposit - 80% before delivery

Contact Now

Samsung SM411 SMT Pick and Place Machine, 42000 CPH, Original and Used SMT Pick and Place Machine

The SM411 is based on On Fly, a Samsung patented, the fastest-mount mid-speed machine with dual cantilever architecture for chip components 42,000 CPH, SOP components 30,000 CPH (IPC9850 standard) World's fastest in its class. This high-speed SMT mounting machine is also possible to implement high-precision mounting of 50-micron high-precision chip, which from the minimum size 0402 chip to the maximum of 14mm IC components.

Infinite Automation Co., Ltd. offers the best conditions for original and pre-owned SMT machines and equipment. Contact our Sales and Customer Support Team for inquiries.

Advantages:

  • Parallel dual-track, PCB handling time 0 seconds
  • Very low material loss rate: two ten thousandths
  • Samsung's unique flight-centered recognition system (Fly Vision)
  • Feeder component position automatic identification function
  • Advanced flat wire structure
  • Anti-static ESD nozzle
  • New non-stop feeder

PM Manager Management Features:

  • IPC9850 standard can mount 42,000CPH (Chip 1608)
  • Dual Manipulator Drive System (12 heads)
  • In-flight recognition system of images
  • Y-axis dual servo motor drive system
  • Bilateral standard feeder base
  • Can be installed 120 8mm belt, feeders
  • Reference point recognition camera
  • Automatic nozzle replacement device

Features:

  • Color LCD
  • Double rail transfer system
  • Rail width automatically adjusts
  • PCB edge clamping device
  • Feeding process tracking sensor
  • Windows XP operating system
  • Order and feed sorting automatic optimization program
  • A standard nozzle

Specifications:

Alignment Mode Flight Vision
Number of Spindles 6 Spindles x 2 Gantry
Mounting Speed ​​Flight Vision Chip 1608
Alignment Mode Flight Vision
Number of Spindles 6 Spindles x 2 Gantry
Mounting Speed ​​Flight Vision Chip 1608
SOP 42,000 CPH (IPC9850)
30,000 CPH (IPC9850)
Mounting accuracy Chip ± 50? @ 3σ / Chip
(Based on the standard chips)
Narrow pitch mounting 0.1mm (0603) / 0.15mm (1005)
Component range 0603 ~ 14mm Chip, QFP, BGA
(Option: 0402 Please contact us. The more information will be available upon your request.)
Minimum pin pitch (QFP)
Minimum ball pitch (BGA) 0.5mm (QFP) / 0.65mm (BGA)
Height H = 12mm
Board size (mm) minimum 50 (L) x 40 (W)
510 (L) x 460 (W)
(Single Lane Mode, 460 (L) Excess: No Buffer)
460 (L) x 250 (W) (Dual Lane Mode)
610 (L) x 460/250 (W) (Option)
PCB thickness 0.38mm ~ 4.2mm
Number of feeders 120ea / 112ea (feeder changer)
Energy consumption Power consumption AC200 / 208/220/240/380/415 V (50 / 60Hz, 3Phase)
Max. 5.0kVA
Air consumption 0.5 ~ 0.7MPa (5.1 ~ 7.1kgf / cm2), 300N? / Min
Weight 1,820kg
Dimensions (mm) 1,650 (L) x 1,690 (D) x 1,535 (H)
